CFAs, in lengths of five to 20 feet and various diameters, to
prevent movement between the connection points of each
flight. The coupler allows for faster assembly and disassembly
on the project site, both key factors in minimizing downtime,
and maximizing each contractor’s return on investment.
At connection points where Spline Couplers are installed,
flight seams are timed together for a smooth transition in
metering soil material up the string. The five set screws and
five internal keys result in a much safer connection point and
allow more torque ability. The five-inch ID delivers excellent
flow for pumping grout material.
Jeffrey Machine also offers seven-inch, 9.25-inch, 11-inch
and 14-inch Spline Coupler assemblies with turning torque
ratings ranging from 49,500 to 500,00 ft. lbs., each with a
safety factor of two.
The company’s state-of-the-art facility uses both standard
and Jeffrey Machine-exclusive equipment, including a gamechanging
Plate Roll that greatly increases their capacity to
quickly roll cylinders of up to two-inch thick material up to
10 feet long, in diameters as small as two feet and as large
as 15 feet, making it perfect for barrels, cylinders and coring
products that need a quick turnaround from shop floor to
job site. This custom Plate Roll was a substantial investment
that greatly improved the factory’s ability to be more responsive
to customers’ needs, and adding new areas of potential
expansion into new markets.
PHOTOS COURTESY OF JEFFREY MACHINE
COMPANY PROFILE
Check out the newest members of the Poseidon family!
Floating Construction Equipment Since 1995
P4 ISO Container Barge
37 Yard Hopper Barge
P10 Barge
PH: 260-422-8767 or 866-992-2743 | Email: info@poseidonbarge.com
www.poseidonbarge.com | 3101 New Haven Ave, Fort Wayne, IN 46803
Standard ISO
Shipping Container
Corner Bracket
SHIP BY LAND, SEA, or RAIL!
Distribution Locations: Fort Wayne, IN • Belle Chasse, LA • Wilton, NY • Cocoa, FL • Plain, WI, Seattle, WA • Anderson, CA
C
M
Y
CM
MY
CY
CMY
K

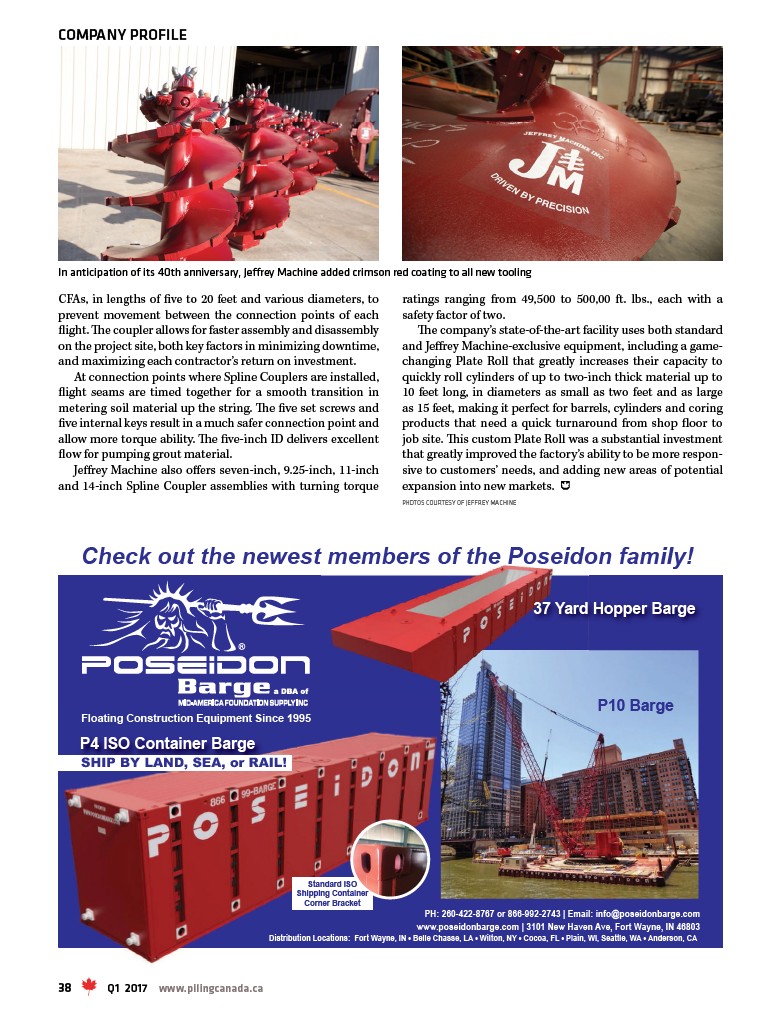

In anticipation of its 40th anniversary, Jeffrey Machine added crimson red coating to all new tooling
